S910+C910 new wireless queue pager system for cafeteria
Premium Products
S910+C910 new wireless queue pager system for cafeteria
1
2
3
4
5
6
Brand Name :iHomepager
Model Number :C910+S910
Working voltage :220V
Standby current :1.5A
Working frequency :433.92MHz
Alert :voice, vibratiing, flash
Material :PC
Decoding :learning code
Capacity :999
pager size :10cm
key board size :92*136*27mm
Distance :500m
Selling Units :Single item
Single package size :40X20X15 cm
Single gross weight :3.0 kg
Package Type :carton
MOQ :1-9 Sets
Price :$220.00
Supply Ability :test
Contact Now
910+C910 new wireless queue pager system for cafeteria
System Configuration: 1. ONE SET consists of keyboard , pagers and rechargeable base.
2. MOQ is one base with 1 keyboard, 10pcs pagers and 1 rechargeable base.
Specifications and pictures:
Pager
Working Voltage
DC3.7V (Rechargeable Battery)
Charging Voltage
DC5V
Working Frequency
433.92MHz/315Mhz
Working Current
75±10mA (Vibration)
100±20Ma(Vibration + Buzzer)
Receive Sensitivity
107±2dBm
Battery Capacity
360mAh
Decoder
Learning Code (ASK)
Dimension
102*83*20mm
Transmitter
Working Voltage
DC5V USB power Adapter
Working Frequency
433.92MHz/315Mhz
Standby Current
24±5mA
Transmit Current
100±30mA
Decoder
Learning Code (ASK)
Dimension
157*234*36mm
Charger base
Working Voltage
DC7.5V/1.5A power Adapter
Working Frequency
433.92MHz/315Mhz
Standby Current
24±5mA
Transmit Current
100±30mA
Decoder
Learning Code (ASK)
Dimension
102*83*20mm
How it works
The coaster pager system ususlly in restaurant,hotel, clinic, or any where customer waiting for their service in queue.
1.Guest come to the restaurant and make his or her order.
2.The waiter give each guest a pcs of pager(S910) that matches the guest ID.
3.When the order is ready,the waiter at the front counter will press the transmitter (C910) to alert the pager that guest hold.
4.Guest get the wireless signal by pager viabrating or LED flashing or DIDI with his or her number, and go to the front to take his or her order.
Attention on Battery
The transmitters are with battery, the delivery time by air express may be a little longer, For example, and it may take around 10 days since payment. The Chinese post and Hong Kong post sometimes forbid shipping the product with battery. If so, we may have to remove the battery. Please confirm with us about the shipping details before departure.
Application

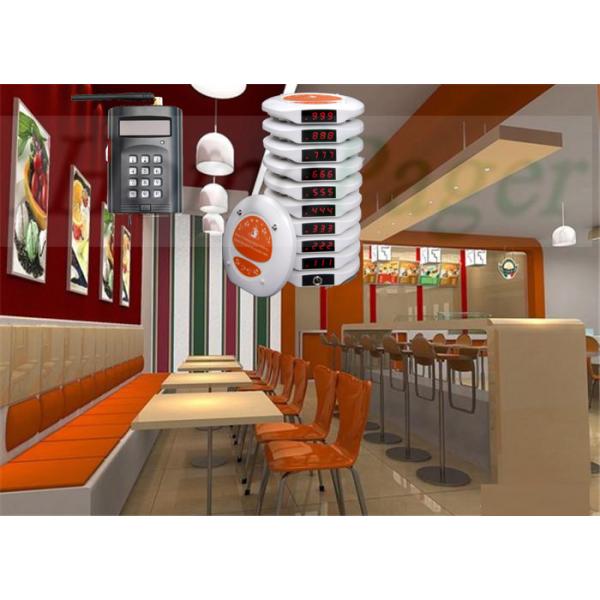

S910+C910 new wireless queue pager system for cafeteria Images
